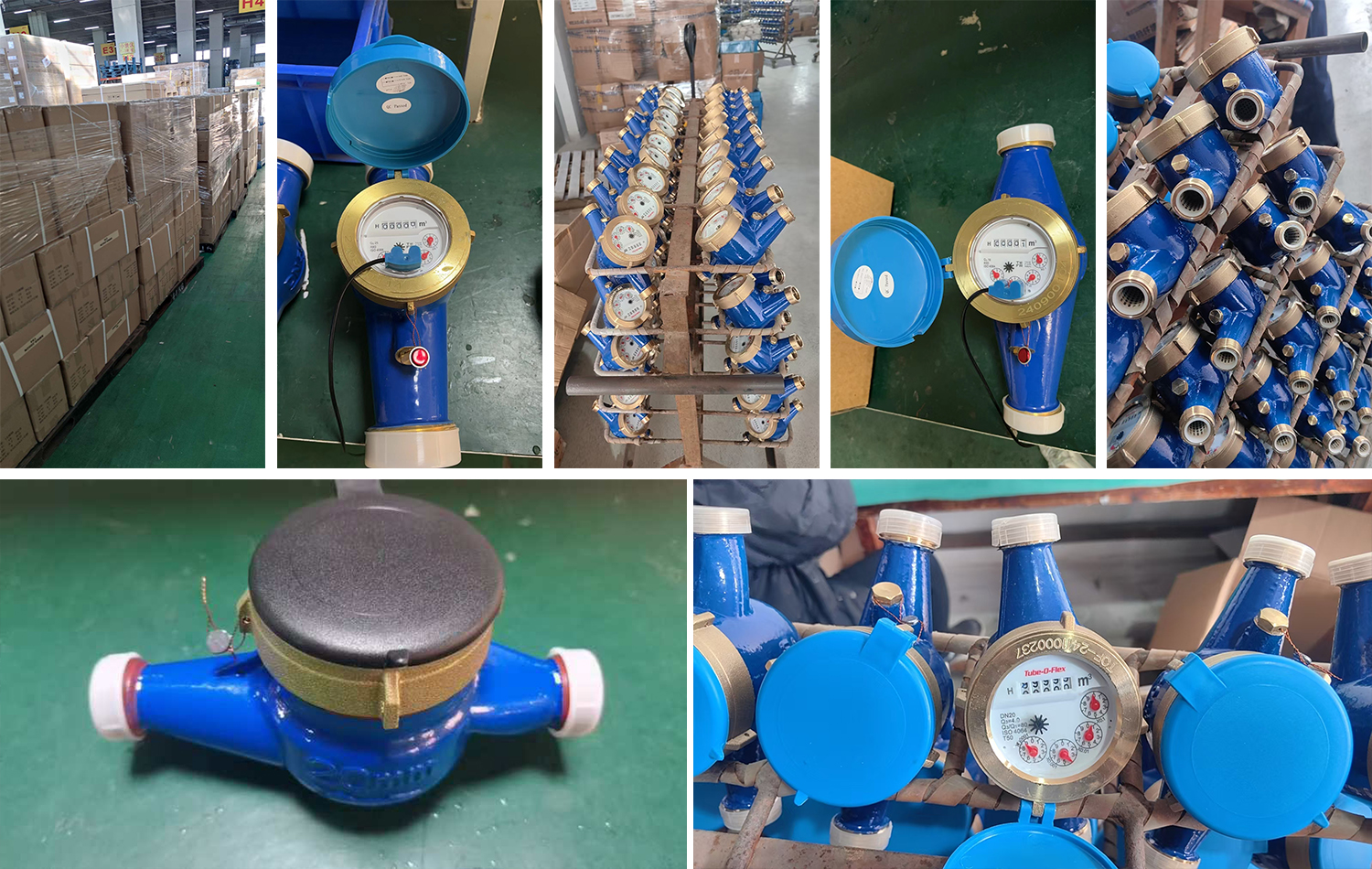

Multijet jet rotary vane cold water meter can also be divided into dry dial type and wet dial type. Available with pulse output (1L/10L/100L one pulse).
Working condition:
a) Water temperature 0.1℃～40℃
b) Water pressure ≤1.0MPa
Maximum permissible error:
a) In the lower zone from qmin inclusive up to but excludingqt is ±5%
b) In the upper zone from qtinclusive up to and including qs is ±2%
Standard: ISO4064
Material: Brass, Iron, nylon, stainless steel
Accessory: a set of nipples, nuts and gaskets
Product Dimensions
Main Technical Specifications:
| Type | Size (mm) | Class | Q4 Overload Flow | Q3 Permanent Flow | Q2 Transitional Flow | Q1 Minimum Flow | Minimum Reading | Maximum Reading |
| m³/h | m³/h | m³ | ||||||
| LXSG - 15 | 15 | B | 3.125 | 2.5 | 0.05 | 0.03125 | 0.00005 | 99,999 |
| LXSG - 20 | 20 | B | 5 | 4 | 0.08 | 0.05 | 0.00005 | 99,999 |
| LXSG - 25 | 25 | B | 7.875 | 6.3 | 0.126 | 0.07875 | 0.00005 | 99,999 |
| LXSG - 32 | 32 | B | 12.5 | 10 | 0.2 | 0.125 | 0.00005 | 99,999 |
| LXSG - 40 | 40 | B | 20 | 16 | 0.32 | 0.2 | 0.00005 | 99,999 |
| LXSG - 50 | 50 | B | 31.25 | 25 | 0.5 | 0.3125 | 0.00005 | 99,999 |
Dimensions:
Type | Size | Length L | Width W | Height H | Connecting Thread D (in) |
| mm | |||||
| LXSG - 15 | 15 | 165 | 98 | 107.5 | G 3/4B |
| LXSG - 20 | 20 | 190/195 | 98 | 109 | G1B |
| LXSG - 25 | 25 | 225/260 | 103.5 | 115 | G1 1/4B |
| LXSG - 32 | 32 | 230/260 | 103.5 | 115 | G1 1/2B |
| LXSG - 40 | 40 | 300 | 125 | 156 | G2B |
| LXSG - 50 | 50 | 300 | 125 | 156 | G2 1/2B |
| 280 | 165 | 181 | Flange connect ISO7005-2:1988 φD=125 | ||
