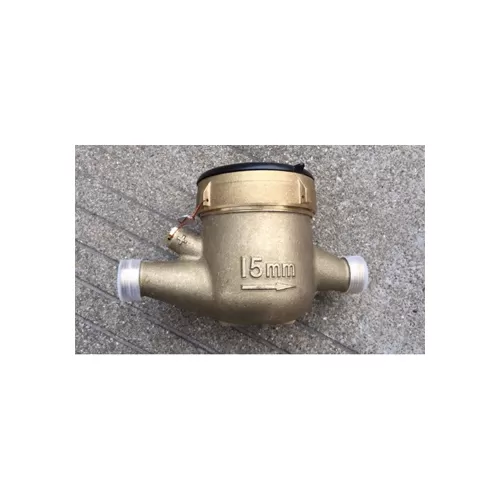

This water meter can reach Class C level, with characteristics of simple structure and higher measuring accuracy, and it is widely used In Europe and the United States markets. Available with pulse output (1L/10L/100L one pulse).
Working condition:
a) Water temperature0.1℃～40℃
b) Water pressure≤1.0MPa
Maximum permissible error:
a) In the lower zone from qmin inclusive up to but excludingqt is ±5%
b) In the upper zone from qtinclusive up to and including qs is ±2%
Standard: ISO4064
Material: Brass, Iron, nylon, stainless steel
Accessory: a set of nipples, nuts and gaskets
Product Dimensions
Main Technical Specifications:
| Type | Size (mm) | Class | Q4 Overload Flow | Q3 Permanent Flow | Q2 Transitional Flow | Q1 Minimum Flow | Minimum Reading | Maximum Reading |
| m³/h | m³/ h | m³ | ||||||
| LXSG - 15 | 15 | C | 3.1 | 2.5 | 0.026 | 0.016 | 0.00005 | 99,999 |
| LXSG - 20 | 20 | C | 5 | 4 | 0.040 | 0.025 | 0.00005 | 99,999 |
| LXSG - 25 | 25 | C | 7.9 | 6.3 | 0.062 | 0.039 | 0.00005 | 99,999 |
| LXSG - 32 | 32 | C | 12.5 | 10 | 0.100 | 0.063 | 0.00005 | 99,999 |
| LXSG - 40 | 40 | C | 20 | 16 | 0.160 | 0.100 | 0.00005 | 99,999 |
| LXSG - 50 | 50 | C | 31 | 25 | 0.250 | 0.156 | 0.00005 | 99,999 |
Dimensions:
| Type | Size | Length L | Width W | Height H | Connecting Thread D (in) |
| mm | |||||
| LXSG - 15 | 15 | 165 | 98 | 107.5 | G 3/4B |
| LXSG - 20 | 20 | 190/195 | 98 | 109 | G1B |
| LXSG - 25 | 25 | 225/260 | 103.5 | 115 | G1 1/4B |
| LXSG - 32 | 32 | 230/260 | 103.5 | 115 | G1 1/2B |
| LXSG - 40 | 40 | 300 | 125 | 156 | G2B |
| LXSG - 50 | 50 | 300 | 125 | 156 | G2 1/2B |
| 280 | 165 | 181 | Flange connect ISO7005-2:1988 φD=125 | ||
