Nominal size: DN15-1200mm
Thickness: SCH5S-SCHXXS
Standard: ASME/ANSI, DIN, JIS BS, JB, SH, HG, such as ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28, ASME B16.5, ASME B16.3-1998, MSS SP-43, MSS SP-83, MSS SP-97, GB/T12459－2005, GB/T13401-2005, SH3408, SH3409, HG/T21635, DL/T695, SY/T0510, DIN2617
Material:
Carbon steel: ASTM A234, ASTM A105, st37, ASTM A403, 20、Q235、Q345B、16Mn
Alloy steel: P5、P9、P11、P22、P92、12Cr1MoV、15Mo3、15CrMo、Cr5Mo、Cr9Mo、15CrMoG、22CrMoG、10CrMo910
Surface: black painting, hot galvanized, galvanized, anti-rust oil
Test: material quality, welding quality, level and verticality, non-destructive testing, water pressure test
Nominal size: DN15-1200mm
Thickness: SCH5S-SCHXXS
Standard: ASME/ANSI, DIN, JIS BS, JB, SH, HG, such as ASME/ANSI B16.9, ASME/ANSI B16.11, ASME/ANSI B16.28, ASME B16.5, ASME B16.3-1998, MSS SP-43, MSS SP-83, MSS SP-97, GB/T12459－2005, GB/T13401-2005, SH3408, SH3409, HG/T21635, DL/T695, SY/T0510, DIN2617
Material:
Carbon steel: ASTM A234, ASTM A105, st37, ASTM A403, 20、Q235、Q345B、16Mn
Alloy steel: P5、P9、P11、P22、P92、12Cr1MoV、15Mo3、15CrMo、Cr5Mo、Cr9Mo、15CrMoG、22CrMoG、10CrMo910
Surface: black painting, hot galvanized, galvanized, anti-rust oil
Test: material quality, welding quality, level and verticality, non-destructive testing, water pressure test
Standard | API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G3441, JIS G3444, JIS G3445, DIN 2391, EN10305, EN10210, ASME SA106, SA192 SA210, SA213, SA335, DIN17175, ASTM A179 | |||
Out Diameter | 10.3-1016mm | |||
Wall Thickness | 1.0-100mm | |||
Pipe Length | Fixed length, random length SRL, DRL or as required | |||
Material | ASTM A106 carbon seamless steel pipe | |||
Steel Grade | API 5L, GR B, X42, X46, X56, X60, X65, X70 ASTM A53.A106: GR A, GR B, GR C ASME SA106: GR. A, GR.B, GR.C ASME SA192: SA192 ASME SA209M: T1, T1a ASME SA210: GR.A-Q, GR.C ASME SA213: T2, T5,T9, T11, T12, T22 ASME SA335: P2, P5, P9, P11, P12, P22, P91 DIN7175: ST35.8,ST45.8,15Mo3, 13CrMo44 | |||
Heat Treatment | Annealed: Bright annealed, Spheroidize annealed, Normalized, Stress relieved, Cold finished, Quenched and Tempered | |||
Surface | Black paint, varnish, oil, galvanized | |||
End Protector | 1. Plastic caps (small OD) | |||
2. Iron protector (large OD) | ||||
Application | Fluid pipe, oil pipe, gas pipe, structure pipe, boiler tubes | |||
Test | Chemical Component Analysis, Mechanical Properties, Technical Properties, Exterior Size Inspection, Hydro static Test, X-ray Test. | |||
Remark | Special design available according to requirement | |||
Carbon steel pipe fittings are designed for use in pipeline systems that transport fluids or gases. They are made from a durable and strong material to ensure the smooth flow of liquids or gases in the system. Carbon steel pipe fittings are available in different types, sizes, and shapes, enabling users to choose the best fit for their specific application.

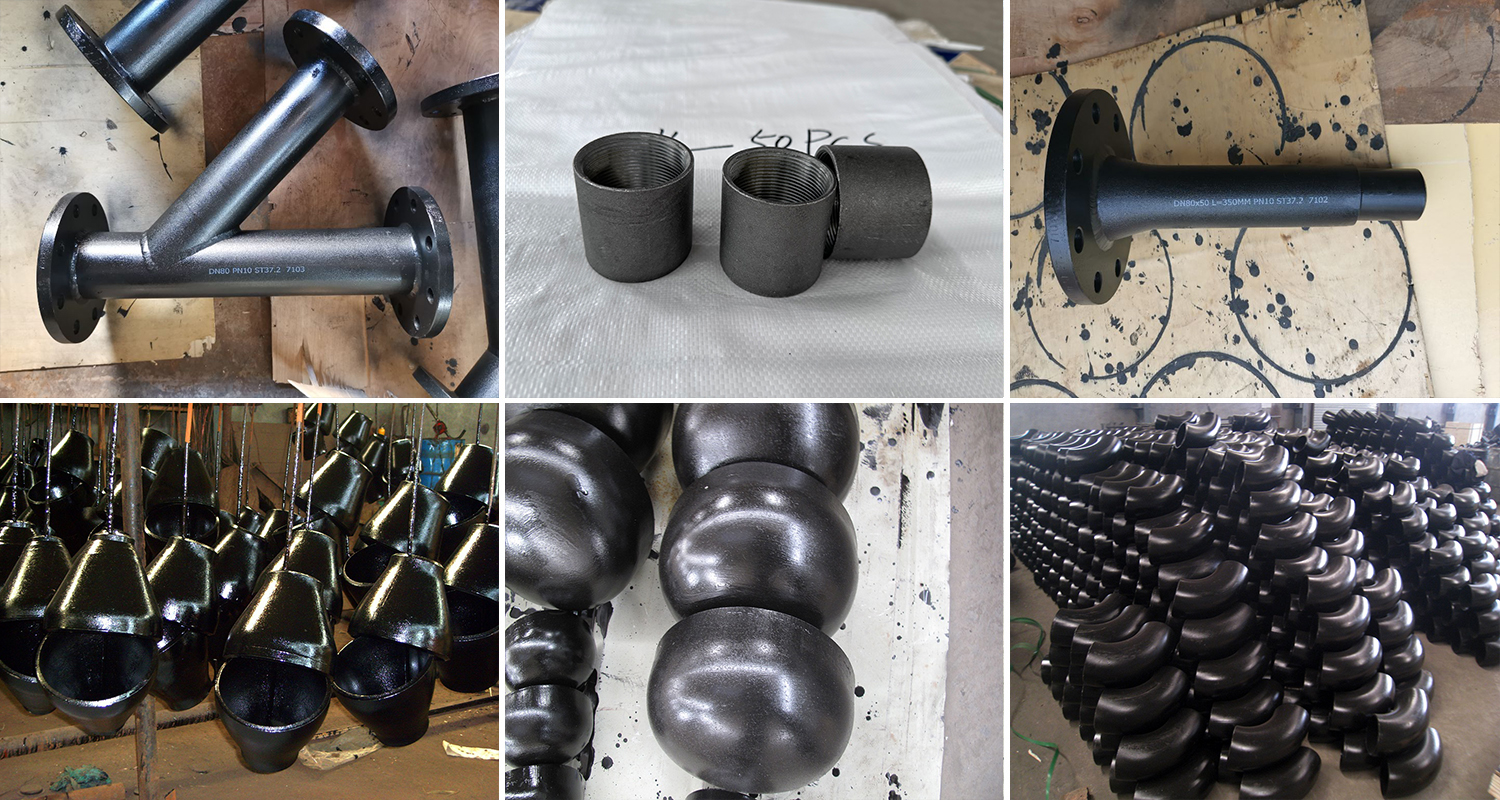

Cap, also known as the head, the plug, the tube cover, It is used to close the pipeline, same with the role of the block. The convex cap includes hemispherical cap, oval cap, saucer cap and sphere crown cap.
Elbow is a pipe fitting which changes the direction of the pipe. The angle, 45 °, 90 ° and 180 °are the most commonly used elbow. According to its radius of curvature to points, it can be divided into long radius elbow and short radius elbow.
Tee is mainly used to change the direction of the fluid, used in the branch of main pipeline. According to the shape, it can be divided into T-shaped and Y-shaped Tee. According to the diameter equality it can be divided into equal Tee and Reducing Tee.
Reducer is a pipe fitting in a pipeline that reduces the pipe size from a larger to a smaller bore (inner diameter). According to the shape, it can be divided into concentric reducer and eccentric reducer.
One of the primary advantages of carbon steel pipe fittings is their high resistance to corrosion and abrasion. The material is also resistant to temperature fluctuations, making it suitable for use in high-temperature environments. Carbon steel pipe fittings are often used in applications where a high degree of reliability and durability is required.
Carbon steel pipe fittings are used in a wide range of industries, including oil and gas, power plants, chemical processing plants, and water treatment facilities. They are also used in plumbing systems within residential and commercial buildings.
Some of the most common types of carbon steel pipe fittings include couplings, tees, elbows, reducers, and flanges. These fittings are manufactured to industry standards such as ASME, ANSI, and ASTM. The fittings are available in standard sizes ranging from 1/8 to 72.
In addition to their functional benefits, carbon steel pipe fittings are also cost-effective. They offer a high degree of durability and low maintenance, making them a sound investment in any pipeline system.
In a word, carbon steel pipe fittings are an essential component of any pipeline system. They offer durability, strength, and reliability while being cost-effective and easy to maintain. With a range of options available, users can select the best fit for their specific application.
