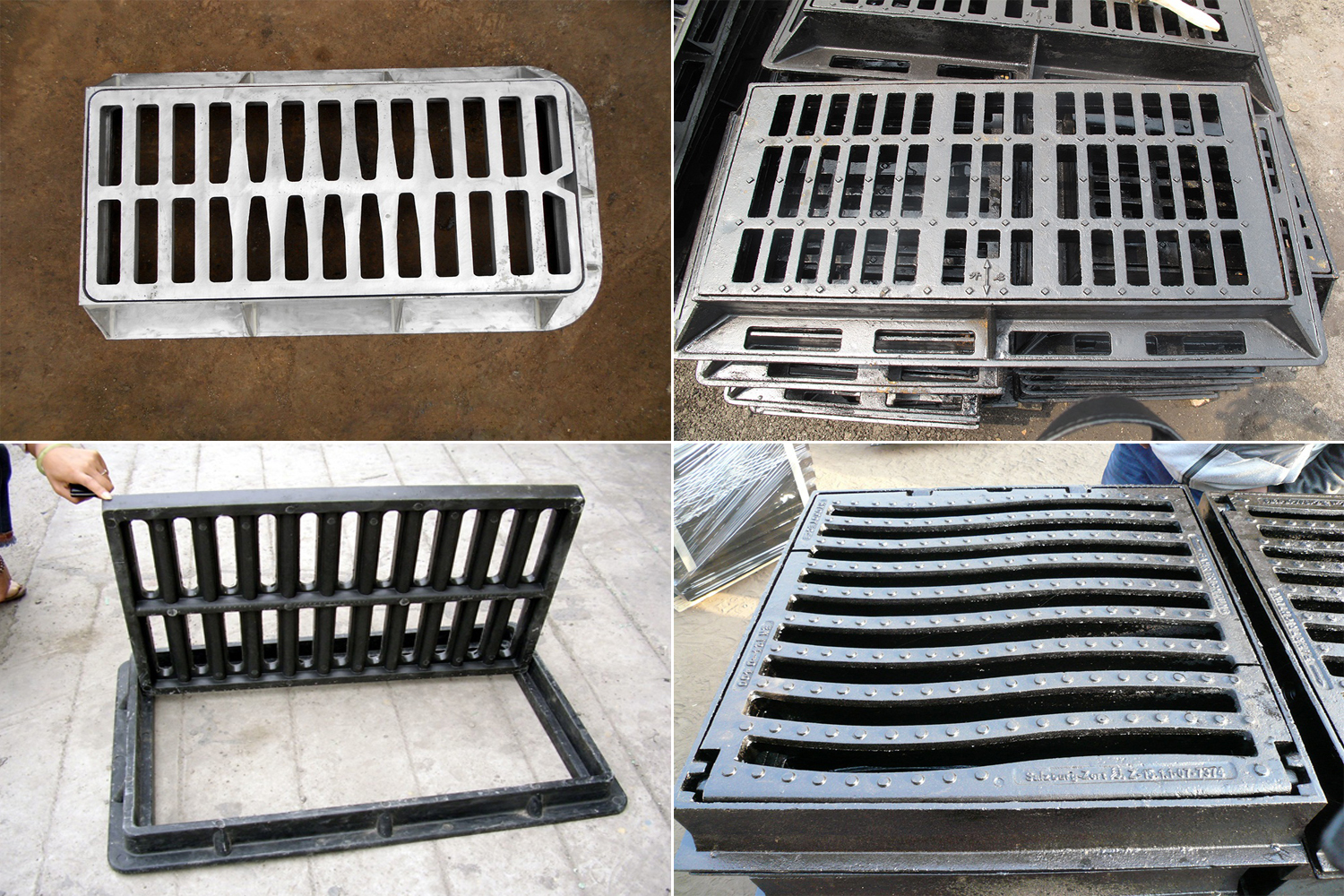

Cast Iron Gully Grate And Frame

Our Cast Iron Gully Grate and Frame is the perfect solution for your drainage needs. Made from high quality cast iron, this grate and frame is durable and long-lasting, ensuring your drainage system stays efficient for years to come...

Share:

Specifications:

1. Standard: A15, B125, C250, D400, E600, F900 class as per EN124 standard.
2. Materials: Ductile iron/ grey iron.
3. Sizes: Could be all kinds.
4. Type: Square, rectangular.

5. Passed ISO9001: 2008

6. We can also produce as per customers' designs.


Our Cast Iron Gully Grate and Frame is the perfect solution for your drainage needs. Made from high quality cast iron, this grate and frame is durable and long-lasting, ensuring your drainage system stays efficient for years to come.



Our grates feature a unique design with a slip-resistant surface, providing excellent traction for pedestrians and vehicles. This slip-resistant surface also helps to prevent accidents caused by slips and falls.



The Cast Iron Gully Grate and Frame is easy to install and comes in a range of sizes, making it suitable for a wide range of applications and drainage systems. It also has a smooth finish that is easy to clean, helping to maintain the appearance and functionality of your drainage system.



In addition to its practical function, our Cast Iron Gully Grate and Frame also has an attractive design that can enhance the look of your surroundings. Its classic design complements a wide range of architectural styles, making it an ideal choice for residential areas, parks, and public spaces.



At our company, we pride ourselves on providing high-quality products at a competitive price. Our Cast Iron Gully Grate and Frame is no exception, and we believe that it represents excellent value for money.



So if you are looking for a reliable, durable, and attractive solution for your drainage needs, look no further than our Cast Iron Gully Grate and Frame. Contact us today to learn more about our products and services.

Product Dimensions

Bearing   Class / Loading Capacity of Cast Iron Manhole Covers
ClassApply toBearingRemarks
EN124-A15Areas where only passed by Pedestrians and Bicycles.15KN
EN124-B125Footways, parking lot or similar areas.125KNHOT-SELLING
EN124-C250The edge combinative area of vehicle road and the pavement.250KN
EN124-D400Vehicle area and urban arterial road.400KNHOT-SELLING
EN124-E600Shipping port and parking apron area.600KN
EN124-F900Airplane taxiway and huge dock.900KN
Loading   PressureFrame  Size(mm)Clear  opening(mm)Height(mm)Weight(kg)Accessories and / or other explanations
C250   flat grating400×400310×3005016with   pin
C250   flat grating700×700600×6007060with   pin
C250   grating with slope400×400310×3005016with   pin
C250   grating with slope600×600500×5005035with   pin
C250   grating with slope520×520430×2505018
C250   grating with slope420×240340×1805012
D400   grating825×825750×75060100
D400   grating725×725650×6506080
D400   grating615×615550×5506060
