February 20, 2025
Some DI pipe installations require support. Therefore, you will need to know the OD of the pipe if you are installing on piers, hanging it from a bridge, or using cutouts in walls or bridge abutments.

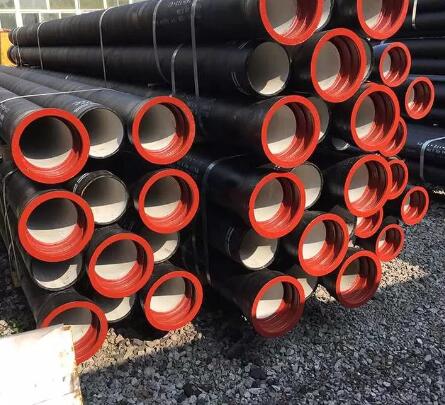

Ductile iron pipes (DIP) are widely used in water distribution, sewage systems, industrial applications, and municipal infrastructure projects due to their superior strength, durability, and corrosion resistance. However, one of the most critical factors when selecting or installing ductile iron pipes is understanding their outer diameter (OD) and inner diameter (ID).
For procurement professionals, contractors, and engineers, knowing the exact OD and ID of a ductile iron pipe is essential for ensuring compatibility with fittings, optimizing flow capacity, and maintaining the integrity of a pipeline system. This article will explore why these measurements matter, how they affect pipe selection, installation, and performance, and how manufacturers can help buyers make informed purchasing decisions.
Before diving into the importance of OD and ID, let’s define these terms:
Outer Diameter (OD): The measurement of the pipe’s exterior from one outer edge to the opposite outer edge.
Inner Diameter (ID): The measurement of the pipe’s interior from one inner edge to the opposite inner edge.
Unlike steel or PVC pipes, ductile iron pipes are classified by their nominal diameter (DN), which refers to their internal diameter rather than their OD. This means that pipes of the same nominal size may have different OD and wall thickness depending on their pressure class or design.
1. Ensuring Proper Fitting and Joint Compatibility
One of the biggest reasons for knowing the OD of a ductile iron pipe is to ensure compatibility with fittings, couplings, and joints. Since ductile iron pipes come in different classes (e.g., Class 50, Class 52, Class 56), their wall thickness—and consequently, their ID—can vary.
Flanged fittings, mechanical joints, and push-on joints require precise OD measurements to ensure a leak-free connection.
Mismatched fittings can lead to improper sealing, leaks, and increased maintenance costs.
Pipe-to-pipe connections require the correct OD for smooth installation with existing systems.
For procurement managers, confirming OD measurements before purchasing ensures that pipes and accessories will fit together seamlessly, preventing costly delays and installation errors.
2. Optimizing Flow Capacity and Hydraulic Performance
Since ductile iron pipes are commonly used for transporting water, wastewater, and industrial fluids, knowing the ID is crucial for determining flow capacity.
A larger ID allows for higher flow rates with less resistance.
Engineers calculate friction loss, velocity, and pressure drop based on the ID of the pipe.
Proper ID selection ensures optimal efficiency in water supply networks, sewage systems, and fire protection pipelines.
For example, a 12-inch ductile iron pipe (Class 52) has a different ID than a Class 56 pipe of the same nominal size due to varying wall thickness. This small difference can impact hydraulic calculations, leading to over- or under-sizing of pumps and valves if not considered.
3. Compliance with Industry Standards and Specifications
Ductile iron pipes follow industry standards such as:
ANSI/AWWA C150/C151 (Thickness and Design Requirements)
ISO 2531 (International Standards for Ductile Iron Pipe and Fittings)
EN 545 (European Standards for Water Pipelines)
Each standard defines acceptable OD and ID tolerances to ensure uniformity and performance across different manufacturers. Procurement professionals must verify compliance with these standards before selecting pipes for municipal or industrial projects.
4. Structural Integrity and Pressure Rating Considerations
The wall thickness of a ductile iron pipe (which affects ID) determines its pressure class and overall structural integrity. Pipes with a thicker wall can withstand higher pressure ratings, making them suitable for:
High-pressure water mains
Industrial fluid transport
Critical infrastructure projects
Selecting the wrong ID can result in underperforming pipes, increased risk of pipe bursts, or unnecessary cost increases due to over-specification.
5. Cost Optimization and Material Efficiency
Understanding OD and ID helps buyers optimize material usage and reduce costs. Selecting a pipe with the right balance of wall thickness, pressure class, and internal diameter ensures that a project is:
Cost-effective: Avoiding oversized pipes that add unnecessary expenses.
Efficient: Ensuring the proper balance between pipe strength and fluid capacity.
Sustainable: Using resources wisely and minimizing excess material waste.
Manufacturers should work closely with buyers to provide customized solutions that meet project requirements without over-engineering.
According to industry reports, over 60% of pipeline failures occur due to improper fittings, joint mismatches, or incorrect pipe sizing.
A study from the American Water Works Association (AWWA) highlights that accurate pipe ID calculations can improve flow efficiency by up to 30%.
In municipal water supply projects, selecting the correct ductile iron pipe OD and ID can reduce operational costs by 10-15% annually due to lower energy consumption and reduced maintenance.
These statistics underscore the importance of accurate OD/ID knowledge when sourcing and installing ductile iron pipes.
For procurement specialists, distributors, and contractors, selecting the right ductile iron pipe can be challenging. Manufacturers play a crucial role in helping buyers by:
Providing detailed OD/ID specifications for each pipe class and pressure rating.
Offering technical consultations to ensure compatibility with existing infrastructure.
Supplying standardized and custom-fabricated solutions to meet project needs.
Ensuring compliance with international standards to guarantee product quality.
By partnering with a trusted ductile iron pipe manufacturer, buyers can make informed decisions that optimize performance, cost-efficiency, and longevity.
Knowing the OD and ID of ductile iron pipes is critical for proper fitting, hydraulic efficiency, structural integrity, and cost-effectiveness. Whether you’re working on a municipal water system, industrial pipeline, or sewage network, selecting the right pipe dimensions can prevent installation issues, enhance performance, and reduce long-term costs.
For contractors and procurement teams, working with a reliable ductile iron pipe manufacturer ensures that you get accurate sizing, compliance with industry standards, and tailored solutions for your project needs.
Contact us today to explore our comprehensive range of ductile iron pipe solutions designed for durability, efficiency, and reliability.
