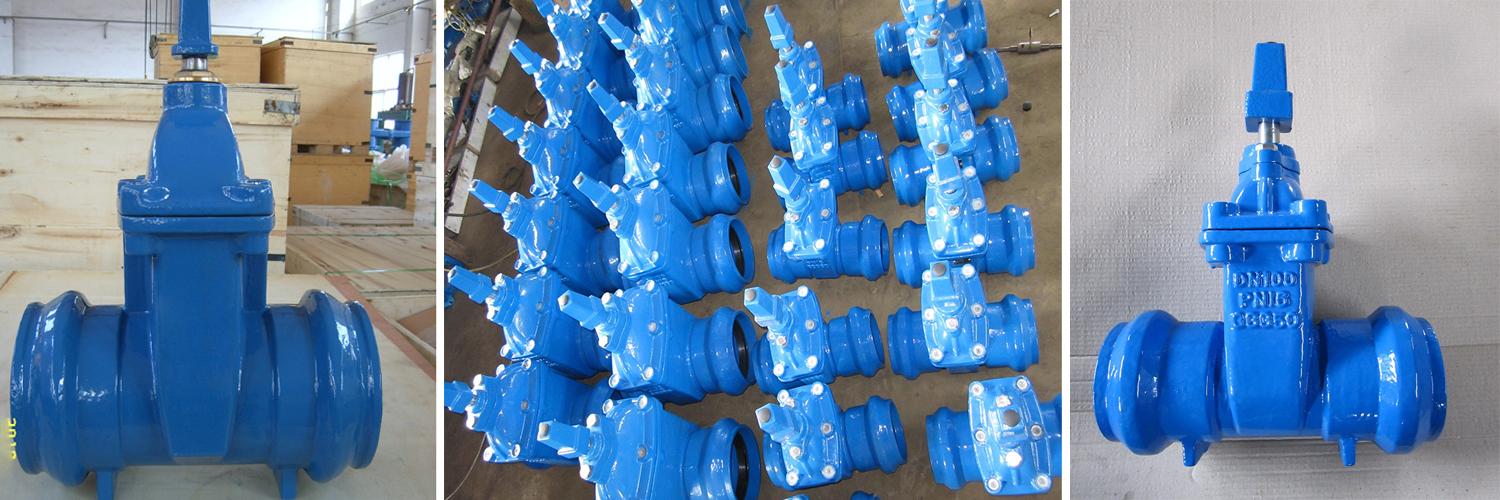

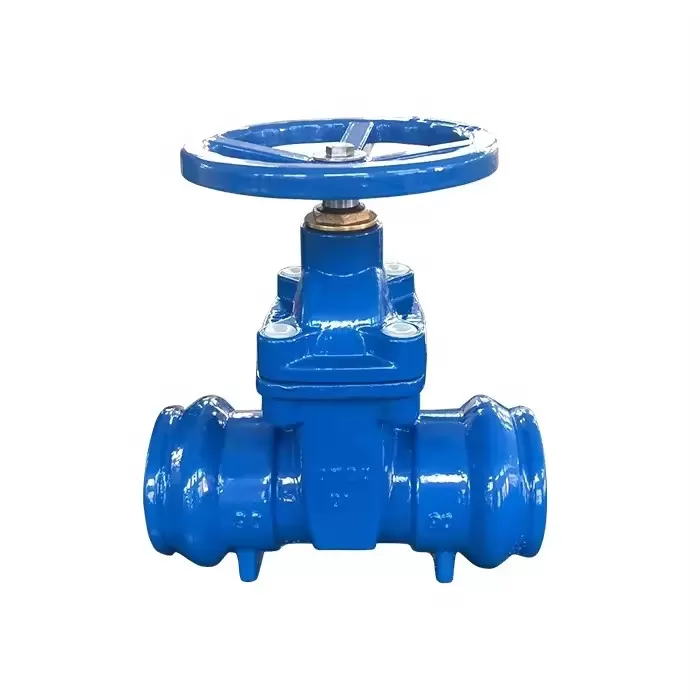

Socked End Gate Valve

Standard: DIN 3352-F4 ,DIN 3352-F5, BS5163, AWWA C509，AWWA C515

Working pressure: 10bar/16bar/25bar

Testing pressure:

Shell: 15bar/24bar/37.5bar

Seal: 11bar/17.6bar/27.5bar

Material:

Body: Ductile iron GGG40/50 or Cast IronGG25

Wedge: Ductile iron GGG40/50+EPDM/NBR or metal seated

Stem: Stainless steel 2Cr13 , SS304,SS316

Bolt and Nuts: Carbon Steel with zinc plated or SS304,316

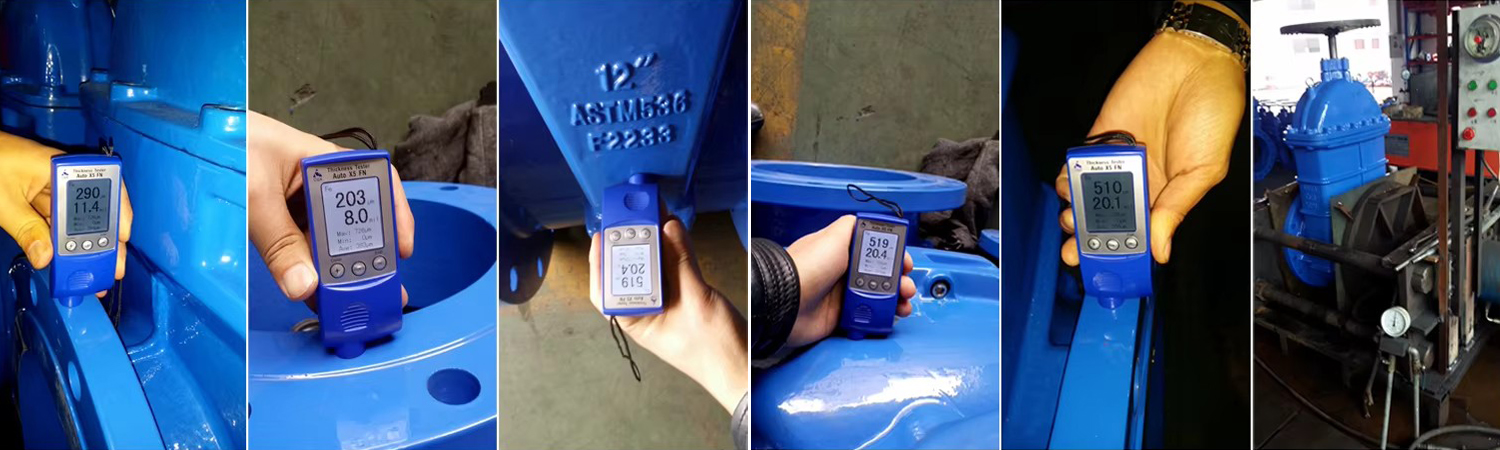

Coating: Internal and external with fusion bonded epoxy coating min250μm

Socked End Gate Valve is a high-quality industrial valve designed for precise control and regulation of fluid flow. It is commonly used in various industries such as oil and gas, chemical, and water treatment plants.

This gate valve is constructed with a durable body made from cast iron, which is known for its excellent resistance to corrosion, rust, and wear. The socketed end design allows for easy installation and maintenance, which is ideal for applications that require frequent inspections and adjustments.

The gate valve also features a non-rising stem that is designed to protect the valve from damage caused by external factors such as dirt and debris. The valve's full-bore design ensures an unobstructed flow of fluids, thus reducing the risk of pressure drop and minimizing turbulence in the line.

The socked end gate valve is equipped with a gate that can be fully opened or fully closed. The gate is held in place by two wedges that slide against each other, ensuring a tight seal. The valve's operational mechanism is simple and reliable, making it easy to operate even in harsh environments.

This gate valve is available in different sizes ranging from DN15 to DN600, and can handle pressures up to 16 bar. It is also available in various materials including cast iron, stainless steel, and carbon steel, providing flexibility in choosing the right valve for your specific application.

Overall, the socked end gate valve provides an effective solution for controlling fluid flow in industrial applications. Its durability, ease of installation, and reliable performance make it a popular choice for engineers and maintenance professionals in various industries.
