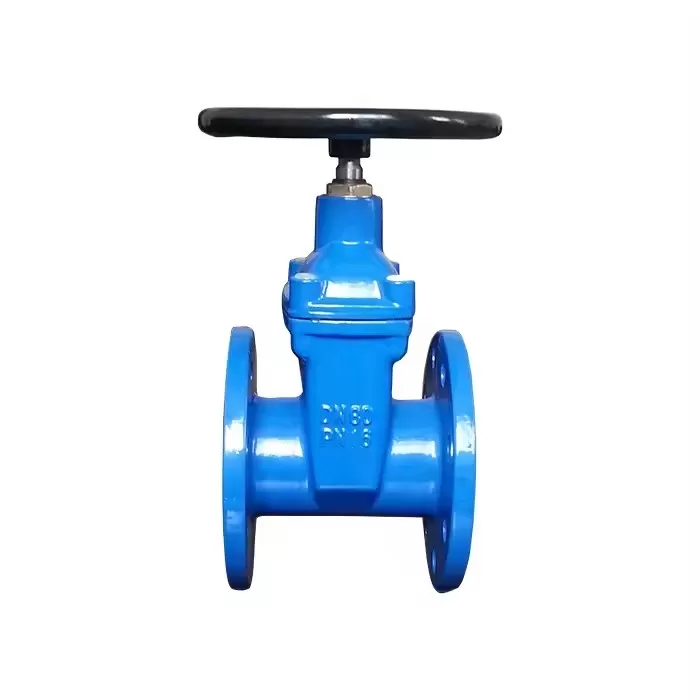

F4 Gate Valve is an advanced solution for water consumption and management. This particular gate valve comes with a meticulous construction, robust design, and superior quality materials to ensure optimal performance and maximum durability for extended usage...
Features:
* Bolted Bonnet
* Replaceable O-ring
* Rubber encapsulated wedge, Brass Wege Nut

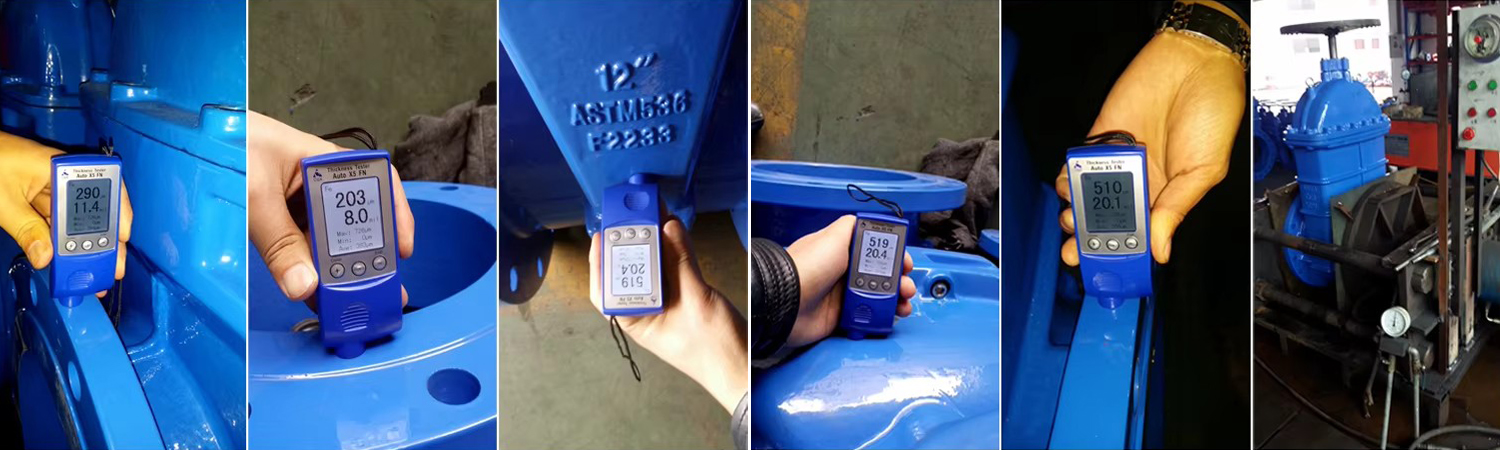

* Fusion bonded epoxy coated inside and outside, blue RAL 5005, 250 Micron thick
* Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC
F4 Gate Valve is an advanced solution for water consumption and management. This particular gate valve comes with a meticulous construction, robust design, and superior quality materials to ensure optimal performance and maximum durability for extended usage.
The F4 Gate Valve boasts a range of features that make it an ideal choice for water management systems. It is a resilient valve that can withstand tough environmental conditions, including high water pressure and harsh weather conditions. It has a precision control mechanism, giving you high accuracy and consistency in regulating water flow.
This valve is made with high-quality materials, ensuring its resistance to corrosion and deterioration over time. Its sturdy build and sophisticated engineering are put to the test through rigorous quality control measures to ensure that it complies with international standards and regulations.
The F4 Gate Valve is a product of superior craftsmanship and precision engineering. It is highly efficient and simple to install, making it an ideal choice for water management systems in residential, commercial, and industrial settings. Whether you are building a new water management system or replacing an old valve, the F4 Gate Valve is the perfect choice.
In short, the F4 Gate Valve is designed with the highest level of precision and quality to ensure that you receive the best possible product. It is a reliable solution that will provide optimal performance and durability, maintaining ideal water regulation in any setting. Choose F4 Gate Valve for a hassle-free experience, ease of use, and trustworthy water regulation.
Product Dimensions
1 | Standard | DIN 3352-F4 , DIN 3352-F5, BS5163, AWWA C509 , AWWA C515Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 PN10, PN16, PN25 | |
2 | Type | Flanged End , Socked End ,Mechanical Joint, non rising stem / rising stem | |
3 | Material | Body | Ductile iron GGG40/50 or Cast IronGG25 |
Wedge | Ductile iron GGG40/50+EPDM/NBR or metal seated | ||
Stem | stainless steel 2Cr13 , SS304,SS316 | ||
Bolt and Nuts | Carbon Steel with zinc plated or SS304,316 | ||
4 | Port Size | DN40-DN600 | |
5 | Pressure | PN10/PN16/PN25 | |
6 | Media | Water, oil, gas, etc | |
7 | Coating | Internal and external with fusion bonded epoxy coating min250μm | |
8 | Packaging | Plywood case |
NO. | PART NAME | MATERIAL |
1 | BODY | DUCTILE IRON |
2 | WEDGE | DUCTILE IRON |
3 | STEM NUT | BRASS |
4 | STEM | STAINLESS STEEL |
5 | GASKET | NBR |
6 | BONNET | DUCTILE IRON |
7 | BONNET BOLT | CARBON STEEL |
8 | O-RING | NBR |
9 | LOCATING RING | BRASS |
10 | O-RING | NBR |
11 | BONNET NUT | BRASS |
12 | MINIPAD | TFL |
13 | DUST RING | NBR |
14 | WHEEL | DUCTILE IRON |
15 | WASHER | CARBON STEEL |
16 | BOLT | CARBON STEEL |
