Home - Products - Valve - Gate Valve - DIN3352 Gate Valve

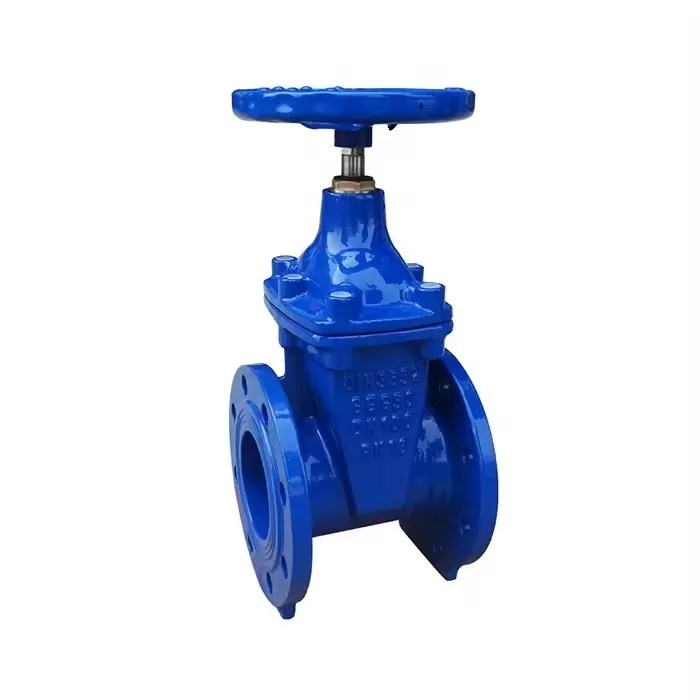

The DIN3352 gate valve is a high-quality valve designed for use in a wide range of industrial applications. This valve is made from high-quality materials such as cast iron, carbon steel, and stainless steel, ensuring its durability and reliability...
The DIN3352 gate valve is a high-quality valve designed for use in a wide range of industrial applications. This valve is made from high-quality materials such as cast iron, carbon steel, and stainless steel, ensuring its durability and reliability.
The valve is designed with a bolted bonnet and non-rising stem, making it easy to install and maintain. The valve is also equipped with a resilient or metal seal, depending on the specific application requirements.
The DIN3352 gate valve is available in various sizes, ranging from DN40 to DN800, with a pressure rating of PN10, PN16, PN25, or PN40. The valve is designed with a flanged end connection, making it easy to install and connect to other pipes and fittings.
This gate valve is suitable for a wide range of applications, including water treatment, oil and gas pipelines, chemical processing, power generation, and more. It is known for its reliable operation and excellent performance in high-pressure and high-temperature environments.
The DIN3352 gate valve is designed and manufactured in compliance with DIN standards, ensuring its quality and safety. This valve is suitable for both manual and automated operation, making it adaptable to a range of control systems and automation requirements.
Overall, the DIN3352 gate valve is a reliable, durable, and efficient valve designed for use in the industrial sector. With its high-quality construction and performance, it is sure to meet the needs of even the most demanding applications.
Features:
* Bolted Bonnet
* Replaceable O-ring
* Rubber encapsulated wedge, Brass Wedge Nut.
* Fusion bonded epoxy coated inside and outside, blue RAL 5005, 250 Micron thick
* Working pressure from -1 to +16 Bar and working temperature from -10 to +80 ºC

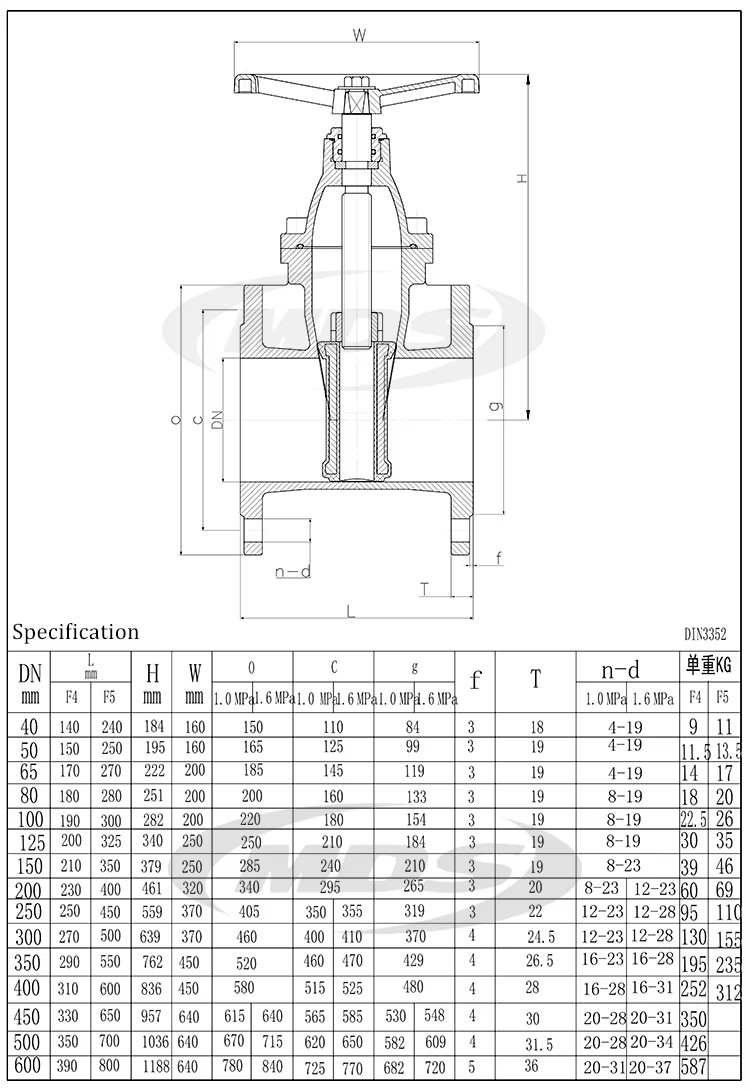

Product Dimensions
| Gate Design | ||
| *wedge gate valveStandard gate valves have wedge plates that enter a slot structure to stop the flow. Because of the design, our wedge gates have less motion resistance and require less torque to control the valve. | *parallel slide gate valveParallel slide valves use a middle disc that slides in the middle of seat rings to create a tight seal.The sliding mechanism can remove particles from the disc to lessen the risk of erosion and leaks. | *knife valveBladed edge is the main feature of knife gate valve that cuts through a granular solid or thick liquid. The uniquefeature of our gate prevents any small particles from blocking the seat to create a solid seal for certain piping operations. |
