Ductile Iron Water Pipe is a robust and reliable piping material commonly used in water supply systems. The ductile iron used in these pipes is a type of cast iron that provides high strength, durability, and flexibility, making it ideal for underground and above-ground applications...
Ductile iron pipes are manufactured according to EN545 (Ductile iron pipes, fittings and accessories and their joints for water pipelines).
| Material | Ductile Cast Iron |
| Type | T-Type(push-on joint) |
| Standard | EN545 |
| Size | DN80-DN2600 |
| Classs | K7, K8, K9, C40, C30, C25, etc |
| Length | 6m, 5.7m |
| Internal Coating | 1. Portland cement mortar lining |
| 2. Sulphate Resistant cement mortar lining | |
| 3. High-Aluminum cement mortar lining | |
| 4. Epoxy Resin Lining | |
| 5. Epoxy Ceramic Lining | |
| External Coating | Zinc+bitumen(70microns) painting |
| Rubber Gasket | NBR rubber, SBR rubber or EPDM rubber ring as per ISO4633 |
| Application | Potable Water / Drinking Water |

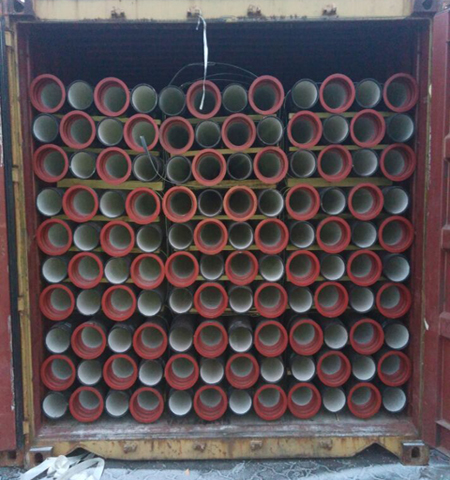

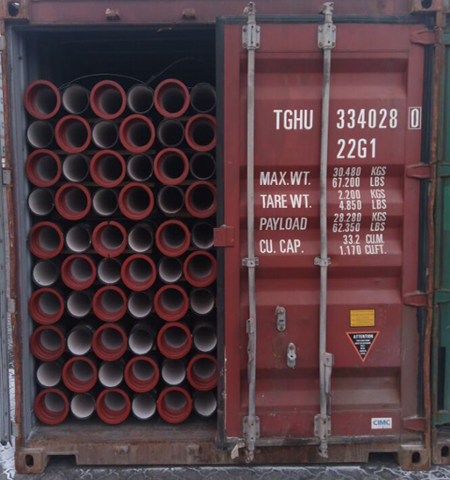

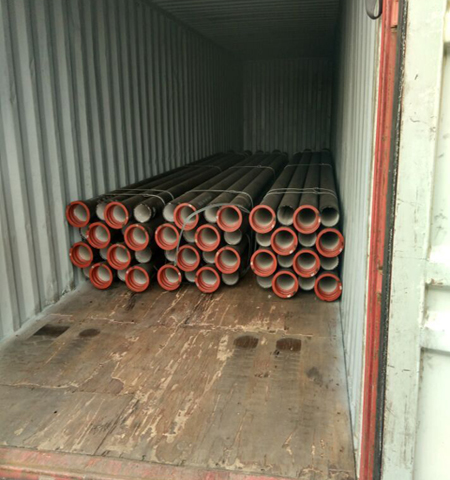

| Packing | DN100-DN300 in bundles; DN350-DN2600 in bulk ship |
| Note | The pipe coating can be customized, such as, zinc-aluminum alloy, PU, etc. |
Ductile Iron Water Pipe is a robust and reliable piping material commonly used in water supply systems. The ductile iron used in these pipes is a type of cast iron that provides high strength, durability, and flexibility, making it ideal for underground and above-ground applications.
The pipe's flexibility is a distinct advantage that makes it tolerant to ground movement, reducing the risk of damage and breakage. With its excellent corrosion resistance, Ductile Iron Water Pipe is a long-lasting and low-maintenance solution that provides reliable performance for decades.
In addition, ductile iron is a recyclable material, making it an eco-friendly choice. Furthermore, because of its versatility and durability, ductile iron has a low environmental footprint throughout its lifecycle.
Ductile Iron Water Pipe comes with various diameters, lengths, and fittings, allowing for customizable installations to meet specific project requirements. The pipe's ends can be flanged, grooved, or plain, according to the application needs.
Our Ductile Iron Water Pipe undergoes rigorous testing and quality inspections to ensure it meets and exceeds industry standards. These pipes are suitable for a vast range of water supply applications, including potable water, waste-water, irrigation, and fire protection systems.
In conclusion, Ductile Iron Water Pipe is a high-performance and cost-effective solution that offers superior strength, flexibility, and corrosion resistance, making it an excellent choice for a wide range of water supply applications in residential, commercial, and industrial settings.
