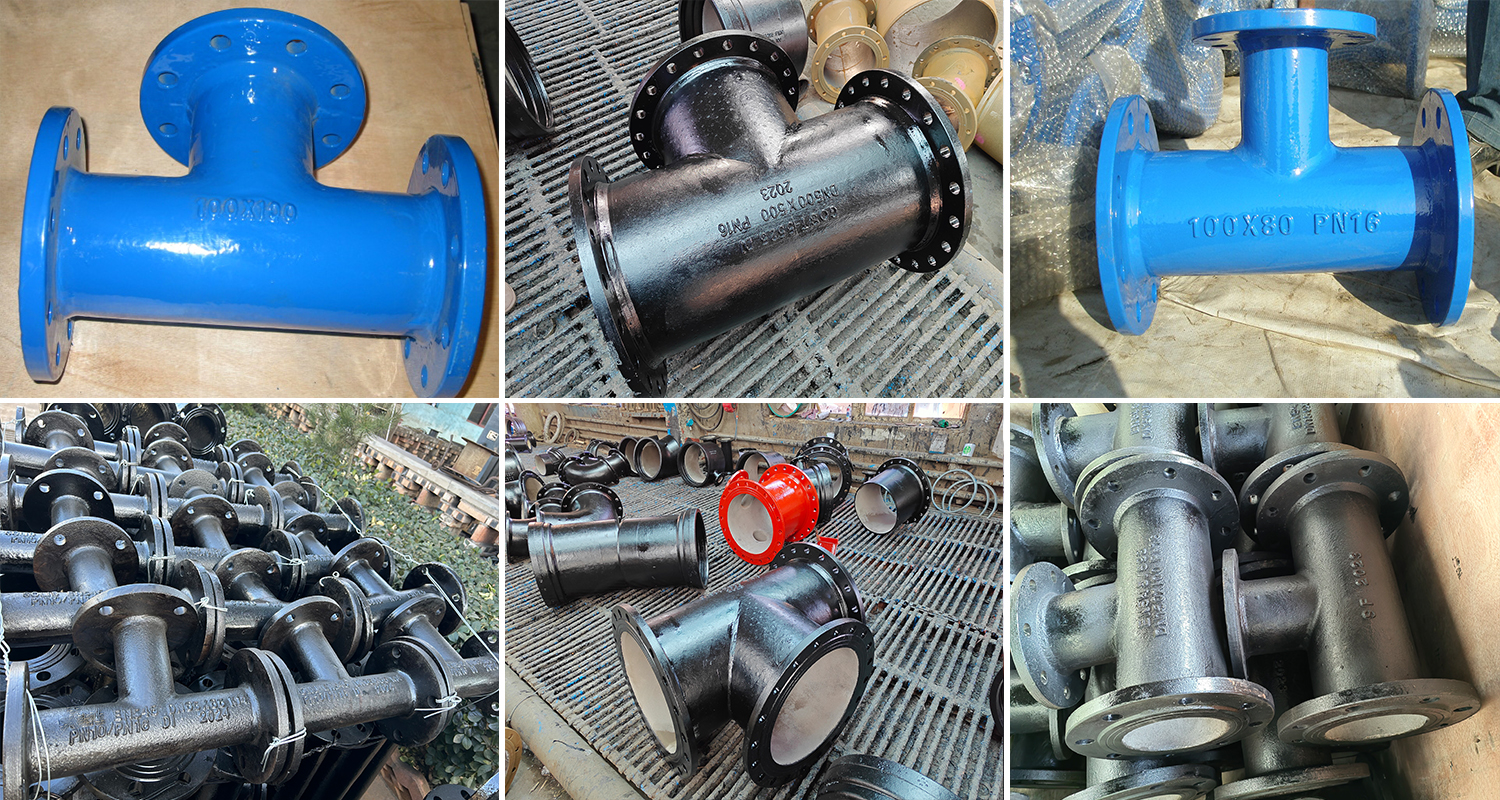

The All Flanged Tee is widely used in piping systems that require hygienic and sanitary connections...
Standard: ISO2531, EN545, EN598
Pressure: PN10/PN16/PN25/PN40
Body material: Ductile iron
Coating:
a). Inside cement mortal lining as per ISO4179 , outside zinc primer black bitumen as per ISO8179 ;
b). Inside and outside with FBE ( fusion bonded epoxy) coating or Epoxy painting ;
c). Inside and outside with Epoxy painting ;
d). Inside and outside wih zinc primer black bitumen.
Gaskets are SBR, NBR or EPDM;
Bolts and Nuts: Carbon steel with galvanized zinc plated G4.8/G8.8, or SS304/SS316.
Package: wooden cases and protection layer.
| Material | Ductile iron |
| Standard | EN545, EN598, ISO2531, ANSI / AWWA, etc |
| Size | DN50-DN2600mm |
| Color | Blue, Black, Red Ect. |
| Joint Type | Flange type |
| Pressure | PN10 / PN16 / PN25 / PN40 |
| OEM | Acceptable |
| Fitting Types | Socket bend, Flanged bend, Socket and Flanged Tee, Flanged socket, Socket taper, blank flanges, as well as Flanged adaptor, coupling, dismantling joints,Fitting for PVC pipes and Other pipeline accessories |
| Surface treatment | Fusion bonded epoxy coating |
| Cement lining inside and zinc and bitumen coating outside | |
| Zinc+bitumen inside and outside | |
| According to customers' requirements | |
| Inspection | Foundry in-house: Third party inspection available upon request |
| Application | Stormwater systems Wastewater systems Irrigation systems |
| Advantage | We can make various high quality ductile iron fittings according to customer's requests. |
| Package | Standard wooden pallets or wooden cases |
The All Flanged Tee is widely used in piping systems that require hygienic and sanitary connections.
The All Flanged Tee is a critical component in piping systems that require the combination of two different pipe diameters and a third branch line. This tee is specifically designed to join pipes at a 90-degree angle, providing a smooth transition from one pipe to another.
The All Flanged Tee is made from high-grade materials that have undergone rigorous testing to ensure durability and long-term performance. The flanges are precision-machined to ensure a perfect fit with the adjacent pipes, while the body is carefully crafted to maintain uninterrupted flow throughout the piping system.
This tee is suitable for use in a variety of industries, including chemical processing, petrochemical, power generation, and water treatment. The All Flanged Tee is capable of handling a wide range of fluid pressures and temperatures, making it an ideal choice for high-pressure applications.
The All Flanged Tee is available in a range of sizes and materials to suit specific application requirements. It can be manufactured from various materials, including stainless steel, carbon steel, and alloy steel, depending on the environmental conditions and fluid properties.
Key features of the All Flanged Tee include:
- Precision machined flanges for a perfect fit
- High-grade materials for long-term performance
- Smooth transition of flow from one pipe to another
- Suitable for high-pressure applications
With its precision engineering and high-grade material construction, the All Flanged Tee is an indispensable component for any piping system. Whether you are working in chemical processing, power generation, or water treatment, this tee is a reliable solution for joining pipes and ensuring smooth flow throughout the piping system.
