Standard: ISO2531,EN545,EN598.
Pressure: PN10/PN16/PN25/PN40.
Body material: Ductile iron, epoxy powder coated.
Pressure:PN10/PN16/PN25/PN40
All Flanged Cross is an essential component used in piping systems to connect four pipes at a cross-junction. It ensures a smooth flow of media in all four directions while maintaining the structural integrity of the pipeline.
Made from high-quality materials, All Flanged Cross is designed to withstand high pressure, temperature, and corrosive environments. It features flanged ends that allow for easy installation and maintenance, making it convenient for use in different applications.
All Flanged Cross is widely used in industries such as oil and gas, chemical processing, petrochemical, power generation, and more. It is also suitable for residential and commercial applications, including HVAC systems, water supply, and plumbing.
All Flanged Cross comes in different sizes and materials to cater to diverse needs. The standard materials used include carbon steel, stainless steel, alloy steel, and other exotic materials with various grades and specifications.
To ensure customer satisfaction, All Flanged Cross meets and exceeds industry standards and regulations such as ASME, ANSI, and API. Testing and inspection are performed to ensure product quality and reliability.
In conclusion, All Flanged Cross is a reliable and efficient component in piping systems that ensures smooth media flow in all four directions. High-quality materials, convenient installation, and a wide range of applications make All Flanged Cross a valuable asset in various industries. Trust us to provide you with reliable products that meet industry standards to keep your pipeline running smoothly.
Material | Ductile iron |
Standard | EN545, EN598, ISO2531, ANSI/AWWA, etc |
Size | DN50-DN2600mm |
Color | Blue,Black,Red Ect. |
Joint Type | Flange type |
Pressure | PN10/PN16/PN25/PN40 |
OEM | Acceptable |
Fitting Types | Socket bend, Flanged bend, Socket and Flanged Tee, Flanged socket, Socket taper, blank flanges, as well as Flanged adaptor,coupling, dismantling joints, Fitting for PVC pipes and Other pipeline accessories |
Surface treatment | Fusion bonded epoxy coating |
Cement lining inside and zinc and bitumen coating outside | |
Zinc+bitumen inside and outside | |
According to customers' requirements | |
Inspection | Foundry in-house: Third party inspection available upon request |
Application | Stormwater systems |
Advantage | We can make various high quality ductile iron fittings according to customer's requests. |

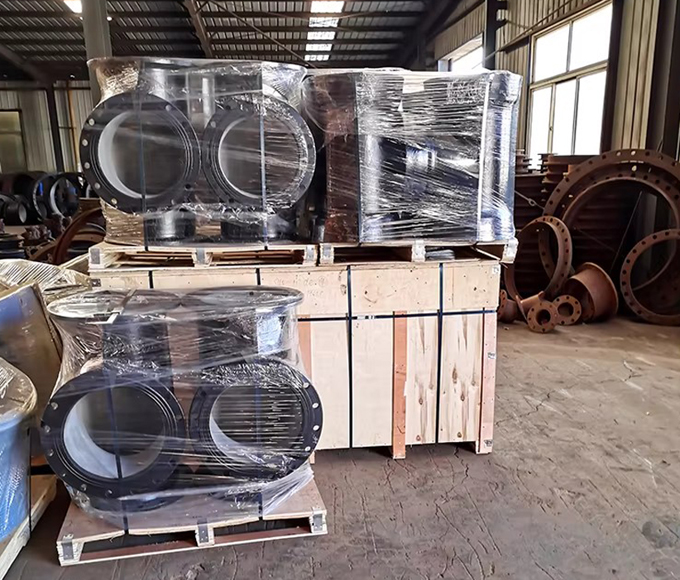

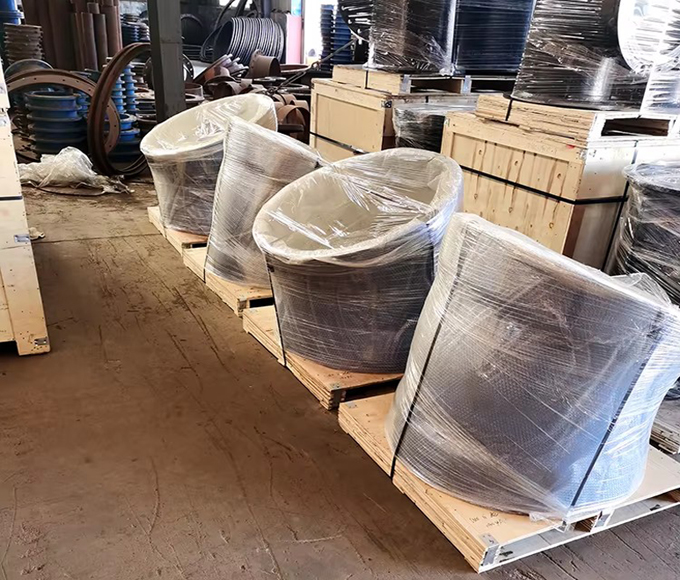

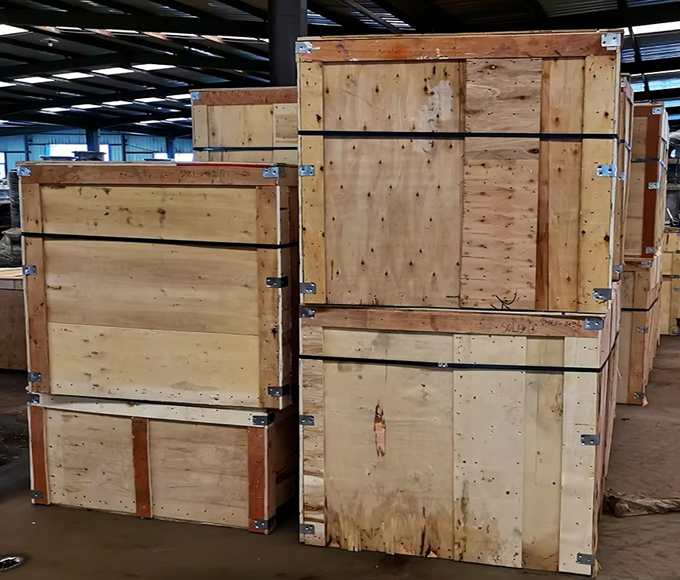

Package | Standard wooden pallets or wooden cases |
| DN (mm) | E (mm) | L (mm) | Mass (kg) - PN10 | Mass (kg) - PN16 |
|---|---|---|---|---|
| 80 | 8.1 | 330 | 20.1 | 20.1 |
| 100 | 8.4 | 360 | 25 | 25 |
| 150 | 9.1 | 440 | 41.1 | 41.1 |
| 200 | 9.8 | 520 | 61.5 | 60.9 |
| 250 | 10.5 | 700 | 102 | 101 |
| 300 | 11.2 | 800 | 122 | 128 |
| 350 | 11.9 | 850 | 174 | 186 |
| 400 | 12.6 | 900 | 211 | 234 |
| 450 | 13.3 | 950 | 320 | 354 |
| 500 | 14 | 1000 | 399 | 399 |
| 600 | 15.4 | 1100 | 416 | 521 |
Midas is a leading flanged cross manufacturer renowned for our commitment to quality, innovation, and precision. Our advanced manufacturing processes, extensive industry expertise, and customized solutions ensure that each flanged cross meets the highest standards of durability and performance. With competitive pricing, reliable delivery, and exceptional customer support, Midas is your trusted partner for all your flanged cross needs. Contact us now.
