Check Valve

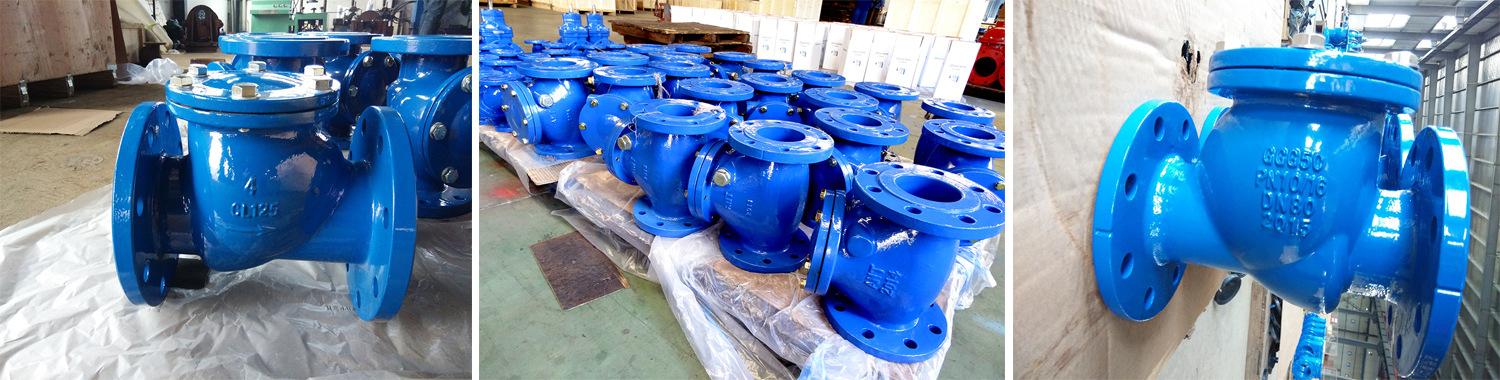

A check valve is an essential mechanical device used in a wide variety of fluid handling systems. It is engineered to permit the unidirectional flow of fluids, which means it allows the fluid to pass through in one specific direction while effectively blocking any reverse flow.

The basic structure of a check valve usually comprises a valve body, a closure element such as a disc, ball, or flap, and a seat. The valve body is the main housing that encloses the other components and provides the pathway for the fluid. The closure element is the movable part that controls the flow. When the fluid is flowing in the correct, or forward, direction, the pressure of the fluid forces the closure element to open, creating a clear passage for the fluid to move through. This opening action occurs because the force exerted by the fluid overcomes the resistance of the closure element and any spring or other mechanism that may be holding it in a closed position.

However, when there is an attempt of backflow, the situation changes dramatically. The closure element, due to the change in pressure differential and the design of the valve, quickly moves to close off the passage. For example, in a swing check valve, a hinged disc swings open with the forward flow and then swings back to close against the seat when the flow reverses. In a ball check valve, a spherical ball moves within the valve body, rolling away from the seat to allow forward flow and rolling back to seal the seat during backflow.

Check valves find extensive applications in numerous industries. In the oil and gas industry, they are used in pipelines to ensure that the transported hydrocarbons flow in the desired direction and do not flow back, which could lead to equipment damage and operational disruptions. In the water supply and sewage systems, check valves prevent the backflow of water, protecting the purity of the water supply and preventing contamination. In HVAC (Heating, Ventilation, and Air Conditioning) systems, they help maintain the proper flow of refrigerants and air, ensuring the efficient operation of the system.

There are different types of check valves to suit various operational requirements. The lift check valve uses a disc that lifts off the seat to allow flow and closes tightly on reverse flow. Wafer check valves are thin and designed to be installed between two flanges, saving space. Dual-plate check valves have two hinged plates that open and close together, providing good flow characteristics and a reliable seal.

In a word, the check valve is a vital component in fluid systems. Its ability to control the direction of fluid flow not only ensures the proper functioning of the system but also protects the associated equipment from damage and maintains the integrity and safety of the overall process. Whether it's in large industrial complexes or in our daily household plumbing, check valves quietly yet effectively perform their crucial role.
