Standard: EN593/ ISO 5752 /BS5155/AWWA C504
Flange drilling is according to DIN 2501, BS4504, ANSI B16.1
Working pressure: 10bar/16bar/25bar
Testing pressure:
Shell: 15bar/24bar/37.5bar
Seal: 11bar/17.6bar/27.5bar
Material:
Body: DI/CI /Carbon Steel/Stainless Steel
Disc: DI/Stainless steel 304/316, AL-Bronze
Shaft: Stainless steel410/416/420, Seat: EPDM/NBR
Coating: Internal and external with fusion bonded epoxy coating min250μm

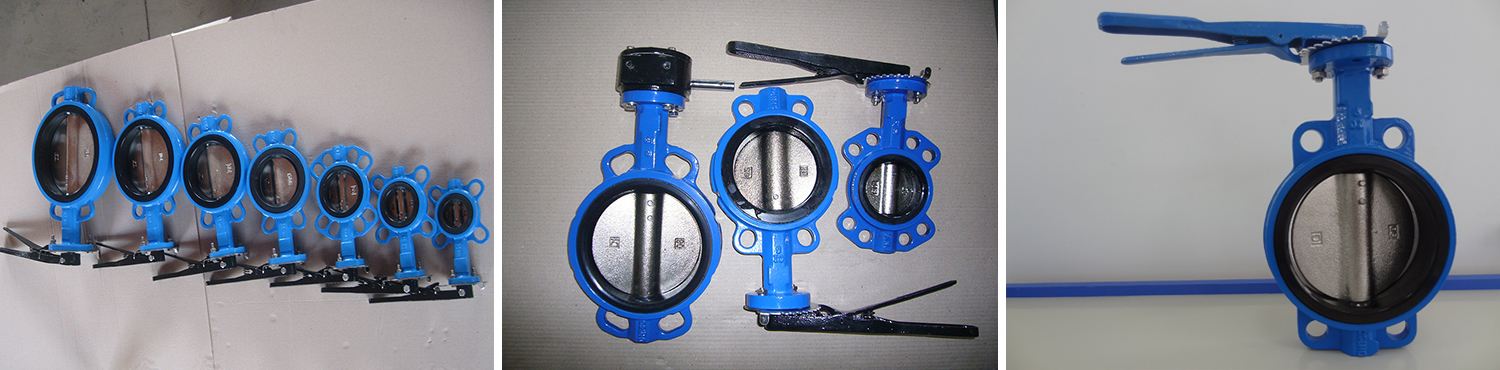

Water Type Butterfly Valve
Material | Ductile iron |
Size | DN40-DN1400(1 1/2''-26'') |
Design | MSS SP-67,BS5155,EN593 |
Type | Wafer type,gear box operated |
Class | 125PSI,150PSI,PN10,PN16 |
PARAMETERS
Parts | 1 | 2 | 3 | 4 | 5 | 6 |
Name | Body | Seat | Disc | Stem | O-rings | Handle |
Material | DI | EPDM/NBR | DI/SS304/SS316 | SS304/SS316 | EPDM/NBR | DI |
Introducing the Water Type Butterfly Valve, a high-quality valve designed to deliver reliable and efficient performance in various applications. This valve is designed to regulate the flow of water and other fluids in pipelines, tanks, and other industrial systems.
The Water Type Butterfly Valve features a disc that rotates around a central shaft to control the flow of fluids. This valve design offers a smooth and streamlined flow, reducing the risk of turbulence or pressure drops, making it suitable for use in high-pressure applications.
The valve body is made of high-quality materials such as ductile iron or stainless steel, ensuring durability, strength, and corrosion resistance. It also features a series of sealing materials such as EPDM, NBR, and Viton to ensure reliable and long-lasting performance in various working temperatures.
One of the most significant advantages of the Water Type Butterfly Valve is its ease of operation. This valve requires minimal force to operate compared to other valve types, making it an excellent choice for manual and automated systems. It also features a low torque operation, which reduces wear and tear on the valve components and prolongs its service life.
This valve is versatile and can be used in various applications, such as water treatment plants, sewage systems, chemical, and petrochemical industries, and power stations. It can handle a wide range of fluids, including clean water, wastewater, corrosive liquids, and slurries.
The Water Type Butterfly Valve comes in various sizes, ranging from 2 inches to 48 inches. It also features a variety of end connections such as wafer, lug, and flanged ends, making it easy to install in various pipelines and systems.
Overall, the Water Type Butterfly Valve is a cost-effective and reliable valve designed to meet the high demands of various industries. It offers a streamlined flow, easy operation, and reliable performance, ensuring uninterrupted operations and enhanced productivity. Get in touch with us today to learn more about this advanced valve and how it can benefit your application.
